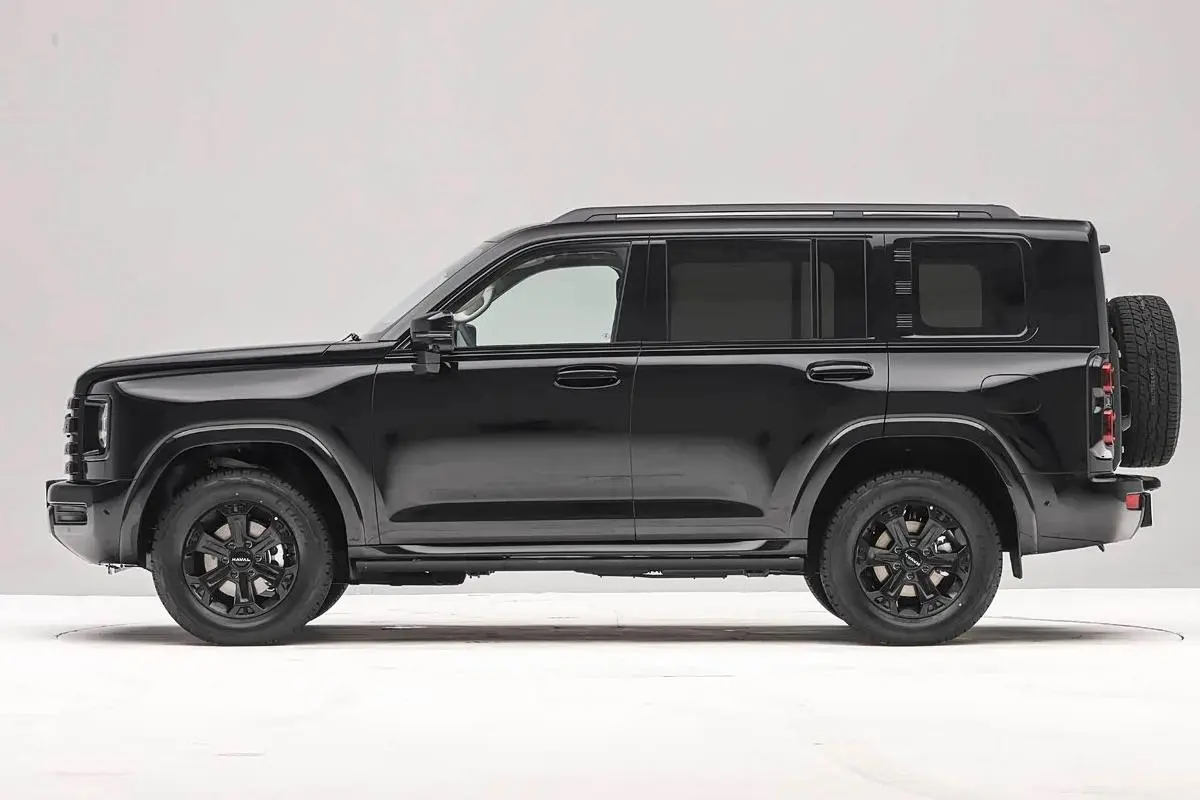

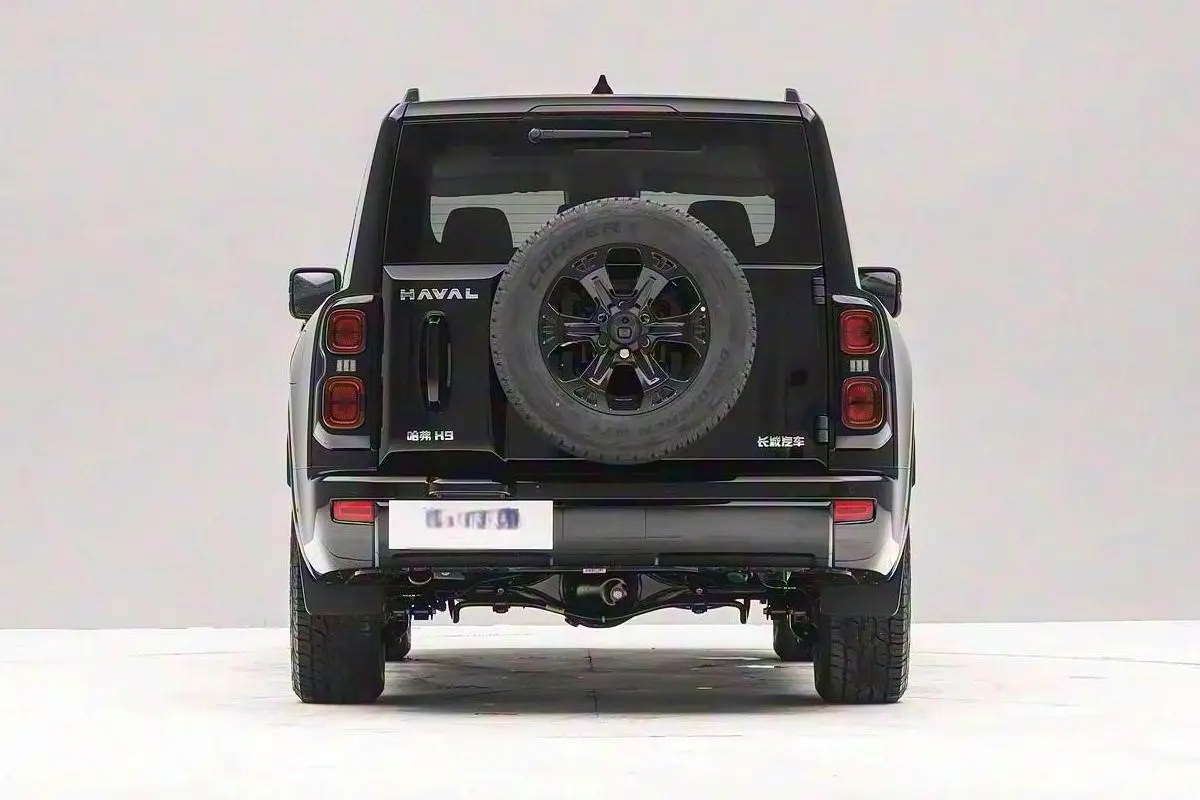

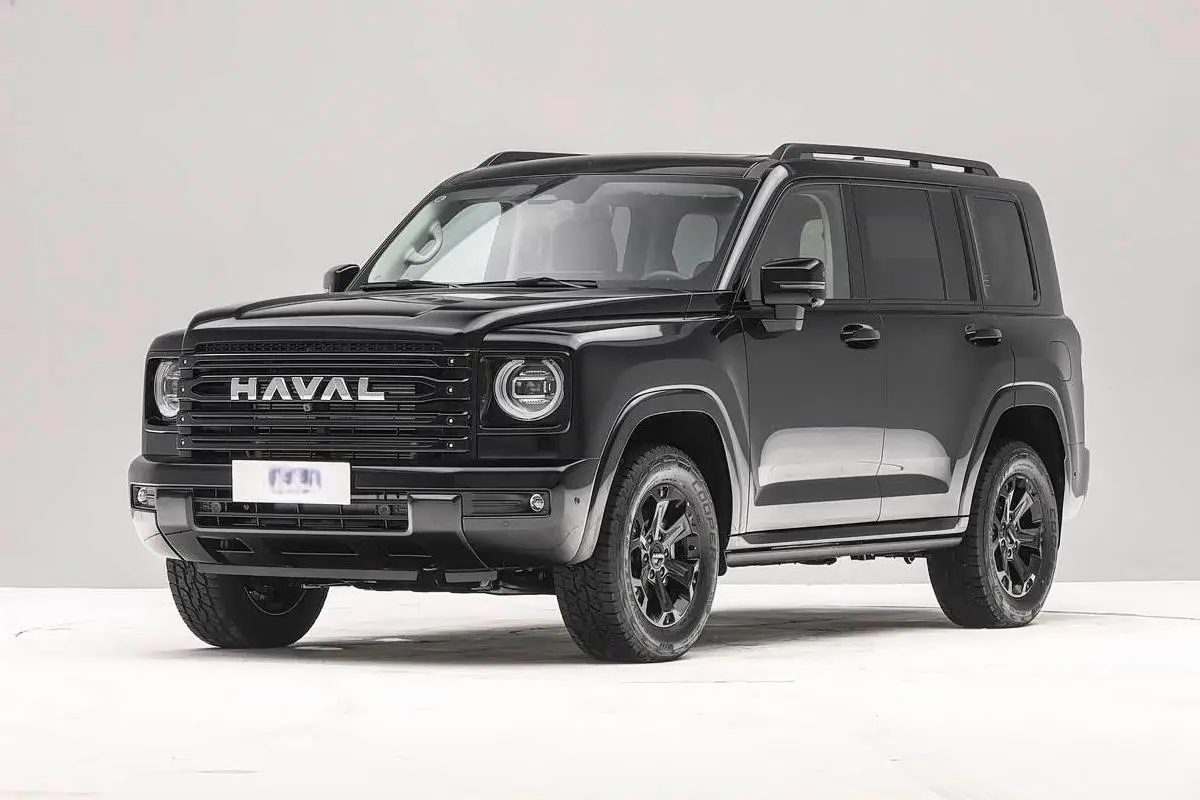

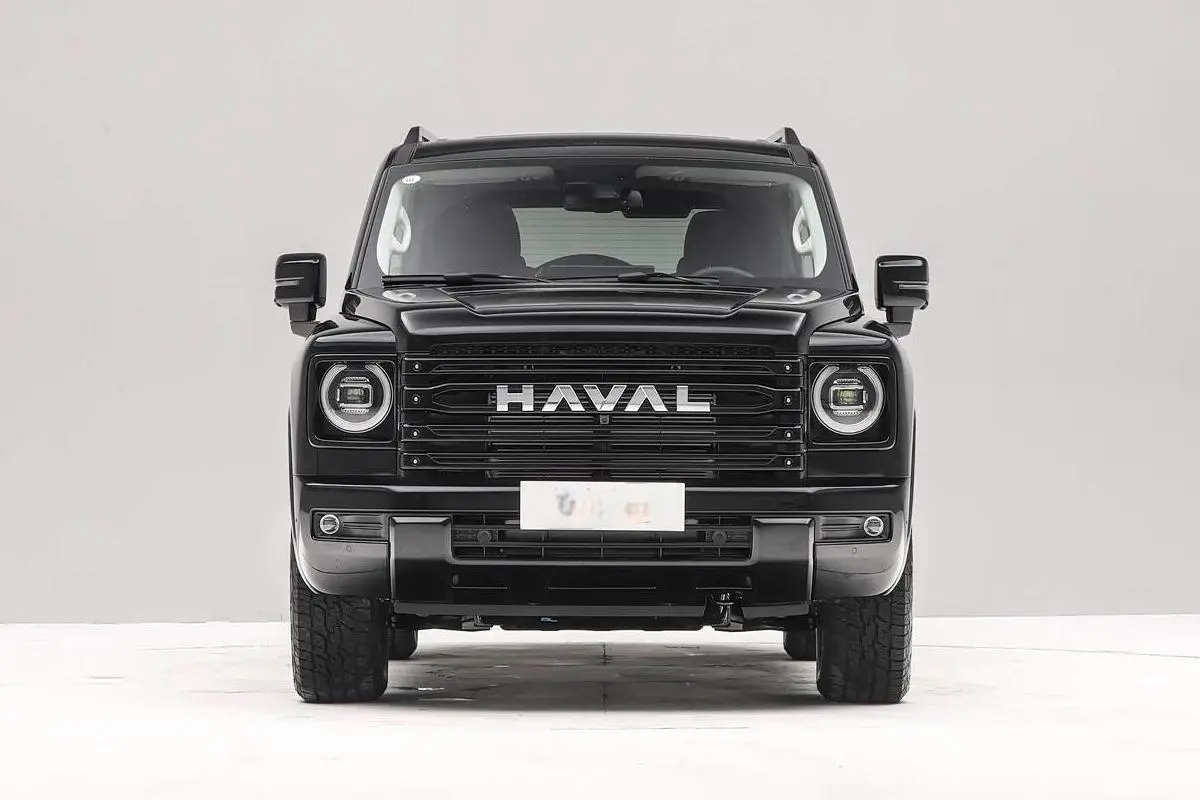

The 2022 Haval H9 adopts a classic and rugged design aesthetic. The vertical and three-dimensional aesthetic shape gives the vehicle a domineering posture, providing a stable and dignified beauty. The redesigned vertical waterfall grille significantly enhances its recognizability, while the fog lights have been updated with premium chrome trim, creating an overall look full of ruggedness and wildness.

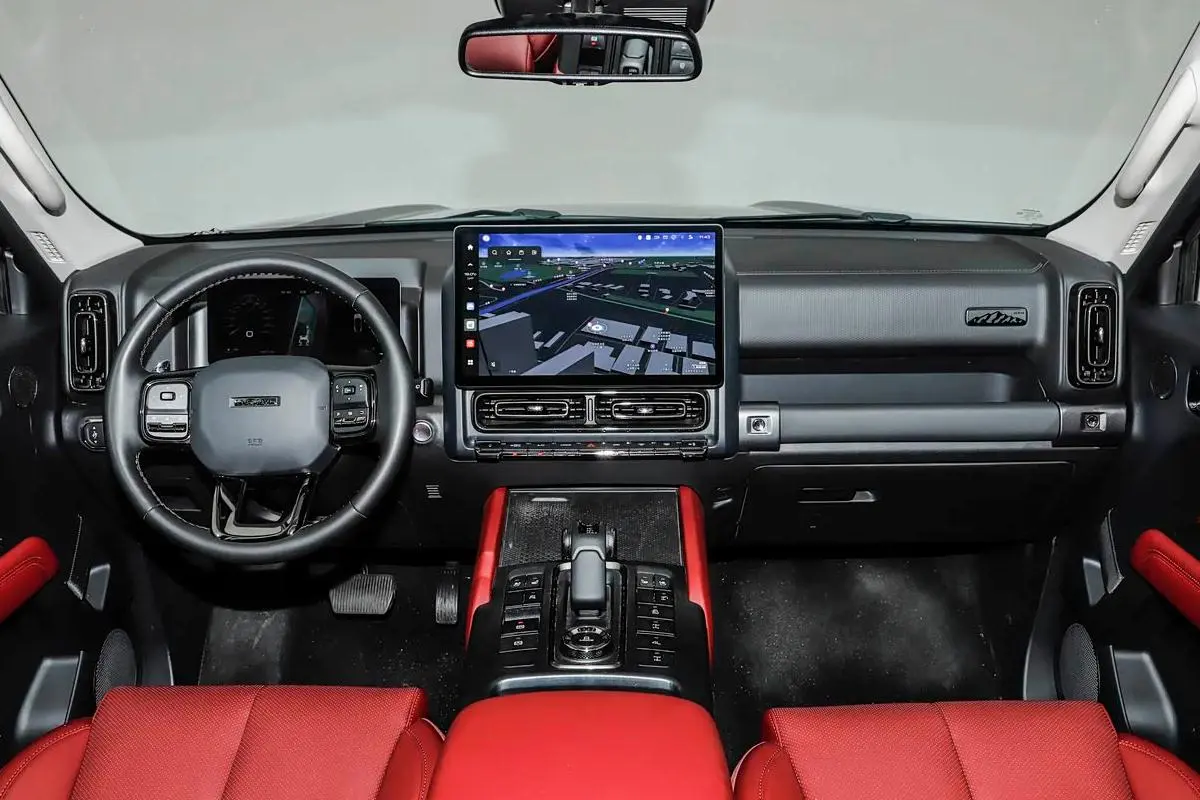

Inside, the vehicle features a fully digital instrument cluster and a four-spoke multi-function steering wheel. The central multimedia experience is driven by an embedded 12.3-inch infotainment system. Designed for tactile efficiency, physical buttons are retained at the lower center console. The electronic gear selector boasts a sophisticated yacht-style design, complementing the stable and premium color scheme of the interior cabin.
Equipped for power, the Haval H9-2022 model features a 2.0T engine delivering a maximum power of 224 horsepower and a peak torque of 385 N·m. The driving force is managed by a world-class ZF 8-speed automatic transmission. The upgraded four-wheel drive system offers improved torque capacity, ensuring superior control across diverse terrains.
| Body Specifications | |
|---|---|
| Length (mm) | 5070 |
| Breadth (mm) | 1960 |
| Height (mm) | 1930 |
| Wheelbase (mm) | 2850 |
| Front / Rear Track (mm) | 1635 / 1635 |
| Door Opening Method | Flat open door |
| Seats | 5 |
| Curb Weight (kg) | 2890 |
| Gross Weight (kg) | 2500 |
| Luggage Capacity (L) | 791 |
| Motor & Engine Parameters | |
|---|---|
| Engine Model | GW4C20B |
| Displacement (L) | 2.0 |
| Intake Form | Turbocharging |
| Engine Layout | Horizontal |
| Cylinders / Valves | 4 Cylinders / 4 Valves per cylinder |
| Maximum Horsepower (ps) | 224 |
| Maximum Power (KW) | 165 |
| Maximum Power Speed (rpm) | 5500 |
| Maximum Torque (N.m) | 385 |
| Maximum Torque Speed (rpm) | 1800-3600 |
| Valve Mechanism | DOHC |
